Details

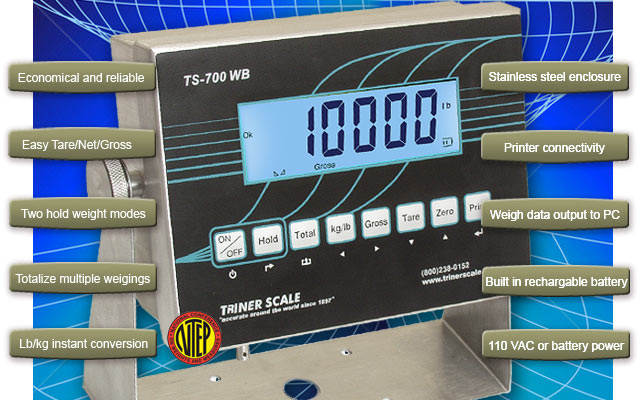

Advanced function, economical digital indicator specifically designed for weigh bars and livestock weighing.

NEMA 4X stainless steel enclosure with quick-connect sockets.

Features
Functions
Specifications
Operating Guide

NTEP Approved, Class III

Bright Easy-To-Read Six Digit Backlit LCD Display

Easy, 8-Button Operation

Tare/Gross/Net Function

RS-232 Port with DB9 Connector

Tilt-Adjustable Stand for Wall or Stand Mounting

Lb to kg Conversion

Checkweighing: Hi, Low, Okay

Weight Accumulation/Totalizing

Ticket Printer Compatible

PC Compatible

PC Datalog™ Data Logging Software Compatible

Remote Display Compatible

110 VAC Power

NEMA 4X stainless steel enclosure


On/Off:	Power on/power off.
Total:	Accumulates total of multiple weighings.
Total:	Accumulates total of multiple weighings.
Kg/lb:	Instantly converts displayed weight from lb to kg.
Gross:	Displays gross weight after tare weight is displayed.
Tare:	Displays Tare weight.
Zero:	Returns displayed weight to zero.
Print:	Prints weigh data to ticket printer, or displays weigh data in remote display, or sends weigh data to PC.

Display resolution: 30,000

Analog to digital conversion: 2,000,000

Input voltage: -3 ~30mvDC

Excitation circuit: 5VDC

Load cell maximum: 8, 350 ohm

Operating temperature: -40°F -- 160°F

Power: 110VAC 9VDC adapter


	Operating Guide, TS-700 Series Digital Indicators
