Model TBS-2424 Bench Scale

Home

TBS-1212

TBS-1616

TSB-2424

TS-700 MS

1
2
3
Details

Economical precision bench scale for high-accuracy bench weighing applications.

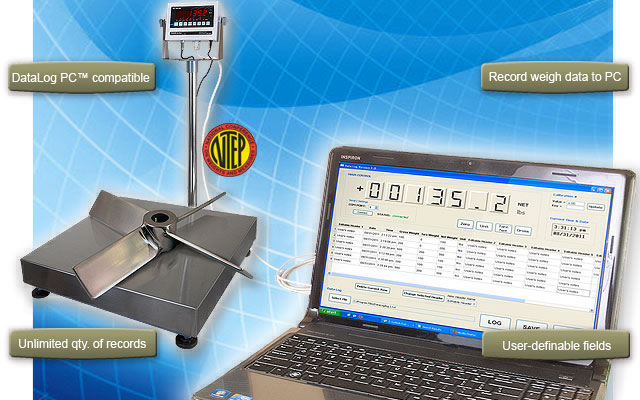

Log weigh data and related statistics directly to PC with Triner's optional DataLog PC™ software.

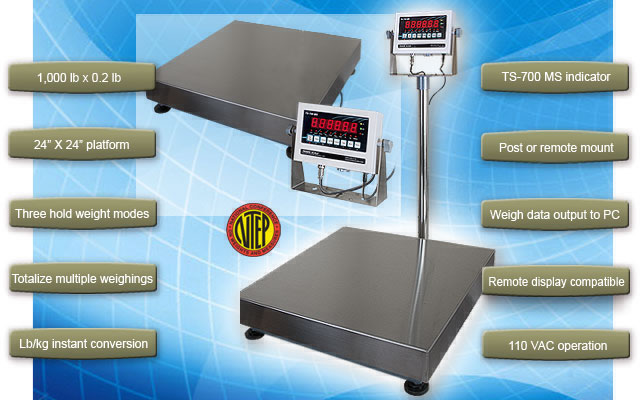

Triner's multi-function TS-700 MS digital indicator is mated to the 24" x 24" bench scale weighing platform.

Features
Functions
Specifications
Brochure
Purchasing Info

NTEP Approved, Class III Legal for Trade

Stainless Steel Weighing Platform

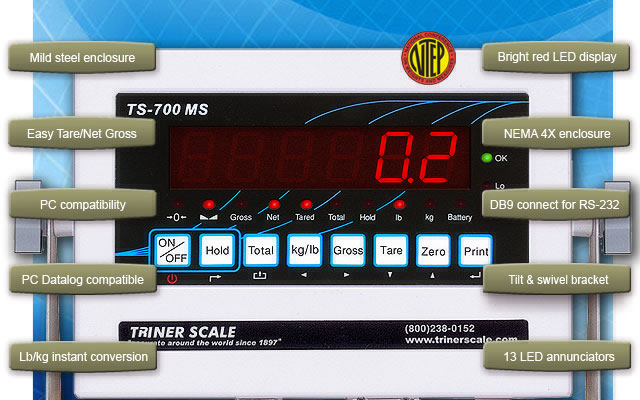

Bright Easy-To-Read Six Digit Backlit LED Display

Easy, 8-Button Operation

Tare/Gross/Net Function

RS-232 Port with DB9 Connector: Printer or Remote Display or PC

Tilt-Adjustable Stand for Wall or Stand Mounting

Instant lb to kg Conversion

Checkweighing

Weight Accumulation/Totalizing

Ticket Printer Compatible

Remote Display Compatible

PC Compatible

110 VAC Power


On/Off:	Power on/power off.
Hold:	Three modes: Auto hold, Manual hold, Hold maximum.
Total:	Accumulates total of multiple weighings.
Kg/lb:	Instantly converts displayed weight from lb to kg.
Gross:	Displays gross weight after tare weight is displayed.
Tare:	Displays Tare weight.
Zero:	Returns displayed weight to zero.
Print:	Prints weigh data to ticket printer, or displays weigh data in remote display, or sends weigh data to PC.

Capacity: 250 lb x 0.05 lb

Platform: 12" x 12", stainless steel

Column Height: 19.5"

Display resolution: 30,000

Analog to digital conversion: 2,000,000

Input voltage: -3 ~30mvDC

Excitation circuit: 5VDC

Load cell maximum: 8, 350 ohm

Operating temperature: -40°F -- 160°F

Power: 110VAC 9VDC adapter

NEMA 4X mild steel enclosure.


PDF:	TBS Series Bench Scale Brochure


	This scale is available for purchase through our webstore at FloorScalesDirect.com
