Details

Advanced features include Truck-in/Truck-out weighing mode and keypad entry of TARE weight.

The 7600E is equiped with two RS-2332 ports. 4-20ma and digital input/output can also be added.

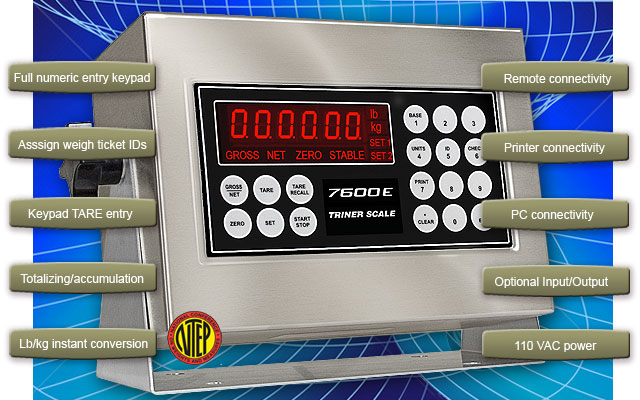

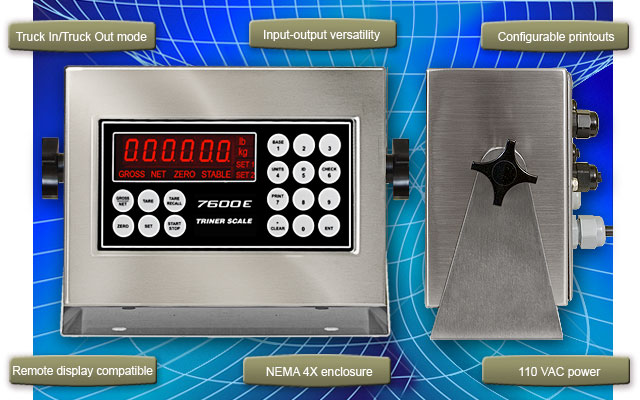

Features
Functions
Specifications
Operating Guide

NTEP Approved, Class III Legal for Trade

Tare/Gross/Net Function

Two Configurable Serial Ports

Multi-function Operating Keys and Full Numeric Keypad

Lb to kg Conversion

Weight Accumulation/Totalizing

Truck Weighing: Truck In/Truck Out With ID Memory

Ticket Printer Compatible

User-customizable Elements for Receipt Printing: Headers, Titles, Time, Date, etc.

PC Compatible

Remote Display Compatible

110 VAC Power

NEMA 4X Stainless Steel Enclosure

Tilt-Adjustable Bracket for Wall or Stand Mounting


Gross/Net:	View gross weight, view net weight
TARE:	Enter TARE weight.
TARE Recall:	View TARE weight
Zero:	Zeros out weight on scale.
Set:	Enter setpoint weight values.
Start/Stop:	Batching control.
Base:	Programing function.
Units:	Toggles between kg and lb weight unit display.
Print:	Sends weigh data from indicator out through RS-232 port, typically to a connected receipt printer.
Clear:	Clears values.
Check:	Runs display test routines.
0 - 9:	Entry of numeric values.

Load cell A/D Converter: 24 bit delta sigma; 16 mv Signal Input

Sensitivity: 0.1 uV/Graduation

Update: 30 updates per second

Excitation: 5 VDC, 120 mA max

Operating temperature: -40°F -- 160°F

Up to (8) 350 ohm load cells or (10) @ 1000 ohms

Single point or multi-point calibration, up to ten points

Power: 117/217 VAC, 50/60 Hz, 20 watts, fuse 0.25A slow blow

Port 1: RS-232 or optional 20 ma current loop I/O board

Port 2: I/O board options: RS-232 or RS-485 or 20 mA current loop


	Operating Guide, Triner 7600E
