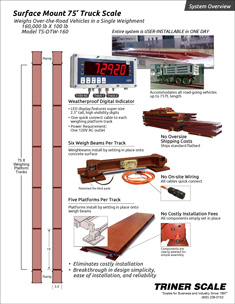

Dual track 160,000 lb capacity truck scale features an innovative weigh bar/platform design, and is a breakthrough in design simplicity and ease of setup.
Entire system ships standard flatbed; no oversize shipping charges.
End user installable LESS THAN 6 HOURS. |

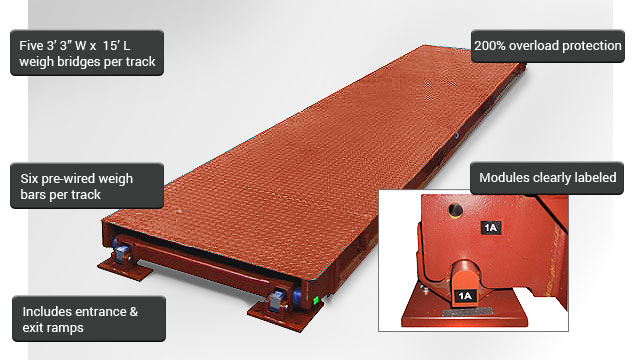

Super heavy duty all-steel platforms provide 200% static overload capacity.
Corrosion resistant finish features two-component epoxy primer. |

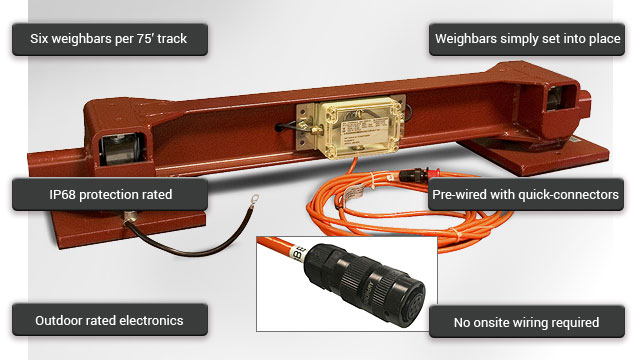

Patent Pending oscillating weigh bar design minimizes side load forces.
Electronics are IP68 rated and include integrated vehicle braking/acceleration compensation limit switches. All cables are pre-wired, and terminate with quick connectors.
|

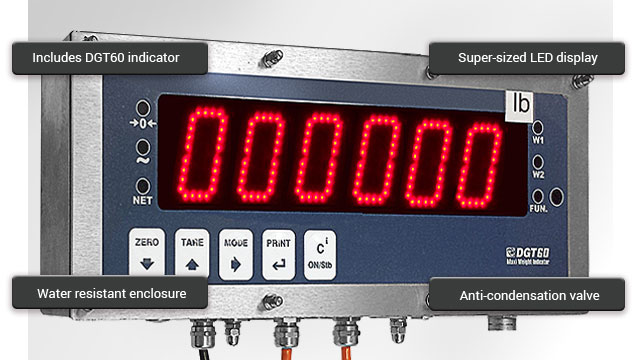

Combination digital indicator and scoreboard display, easily readable from distances of 80' or more.
All stainless steel, IP68 rated enclosure. Simple 5 key operation, receipt printer compatible. 120V AC power.
|
Two model STFX stainless steel IP86 rated load cells per weigh bar, 24 load cells total.
High precision and repeatability: Precision: 0.03% of full scale, Creep at nominal load after 240 minutes < 0.03% full scale.
|
- Features
- Specifications
- Brochure
- Purchasing Info
|
| End user installable, typically less than 6 hours |
| Surface mount dual track design includes entrance & exit ramps |
| Steel components are fully coated with highly corrosion-resistant finish |
| Slip resistant, lobed surface on weighing platforms |

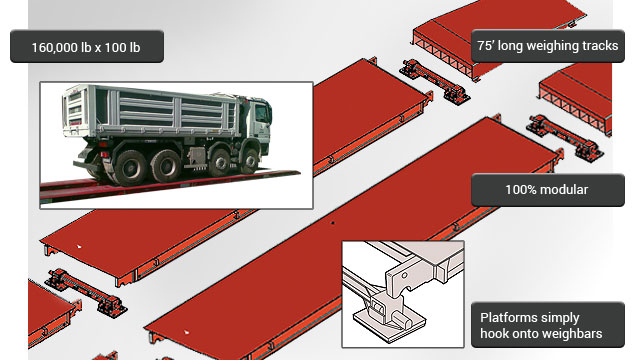

| Weighing platforms simply lower onto weigh bars and hook into position |
| Anti-slip mounting pads on underside of weigh bars |
| All cables are pre-wired quick connect -- no onsite wiring required |
| Includes model DGT60 digital indicator with integrated scoreboard display |
| IP68 rated electronics |
| Factory calibrated |
| Complete truck scale system -- no additional equipment required |
| |
|
|
|
|
|
|
| Capacity: |
160,000 lb x 100 lb |
| Weighing Platform Dimensions: |
(Dual Tracks): 75' L x 3' 3" W x 7.9" H, each track |
| Ramp Dimensions: |
4' 8" L x 3' 3" W x 7.9" H |
| Footprint: |
84' 4"' L x 3' 3" W, each track |
| Load cells: |
Model: STFX. Material: Stainless Steel 17-4 PH. Protection rating IP68.
|
| Digital Indicator: |
Model: DGT60. Main Functions: Weatherproof, 5 key operation, integrated scoreboard display, receipt printer compatible, 120V AC power.
|
| Shipping Weight: |
Contact Triner Scale. |
| Additional Specifications: |
Installation Manual and full technical specifications are available.
Contact Triner Scale at (800) 238-0152. |
|
|
|
|
|
|
Please contact us for details regarding options, pricing and availability.
Call toll free within USA: (800) 238-0152
|
|
This item is typically in stock with a turnaround of 3~4 business days ARO.
|
| |
| |
|
|
